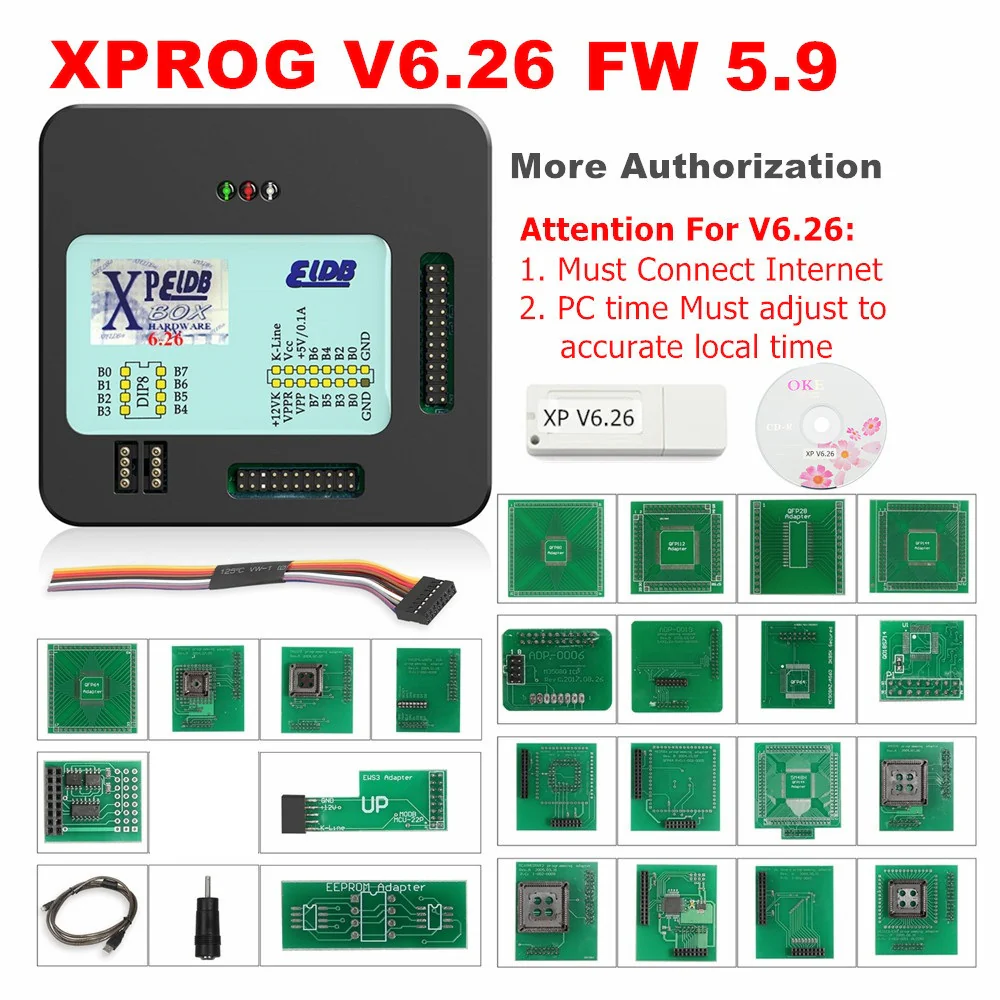

XPROG V6.26 Outil de Programmation ECU Grand écran Adaptateur Complet Détection Automatique Outil avancé Réglage Automatique la Puce ECU Professionnels

XPROG M V6.26 A New Authorizations XPROG Metal Box XPROG-M ECU Programmer with Full Adapters

Software: V6.26, Firmware: V5.9

https://mega.nz/file/WRUQ1ZpT#k7JYFZ-xOC6E2SBHrd5-dZp_rM5oqnvBNZwjZS2T4nA

Product Description

Latest Version Xprog V6.26 XPROG-M ECU Programmer With USB Dongle

ATTETION for Xprog V6.26 ECU Programmer:

1. It must be used online (PLEASE connect internet to use it);

2. The time of the computer must be adjusted to be accurate local time;

3. You must install V6.26 register file;

4. Only support English WINDOWS system, please do not use other language system;

5. Close the software after using the programmer;

6.The computer's disk must have at least 2 or more partitions, such as C drive and D drive

7. When you are not using the programmer, please do not open the software on the computer for a long time. You must close the software and unplug the usb dongle from the computer;

Note: Facotory will not repair the machine or be resonponsible for the broken machine if the customer do not do what we rquest above, thanks so much!

XPROG M V6.50 V6.26 Authorizations:

AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 BM-W EWS3 authorization

AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 MB ZGS001 authorization

AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).

AUTH-0023-1 MAC7xxx

AUTH-0023-2 XC23xx

AUTH-0024-1 MC9S12Cxx

AUTH-0024-2 MC9S12XE

AUTH-0024-3 9S12XE SECURITY

AUTH-0024-4 MC9S12HA/HY/P

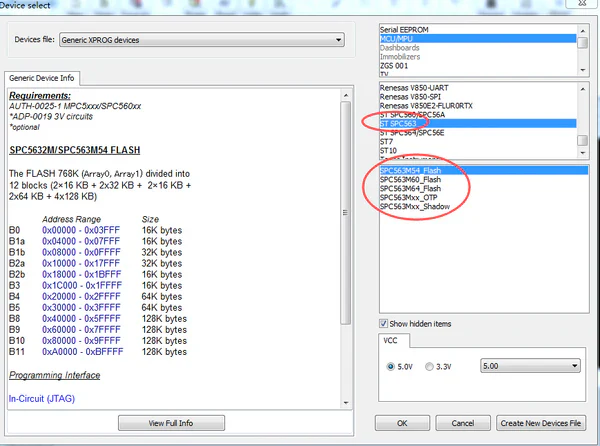

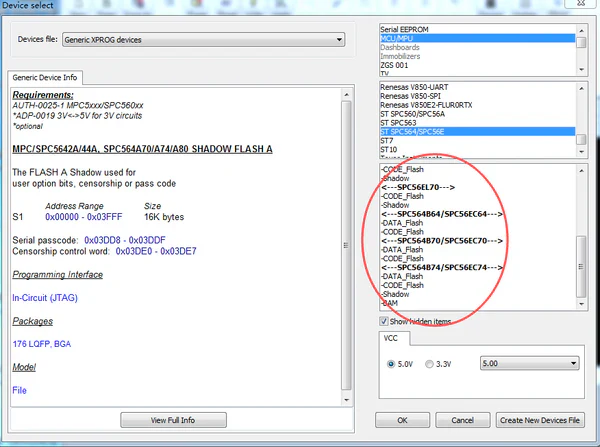

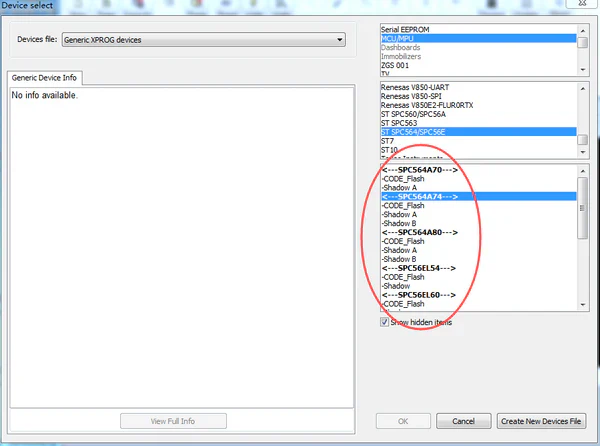

AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13

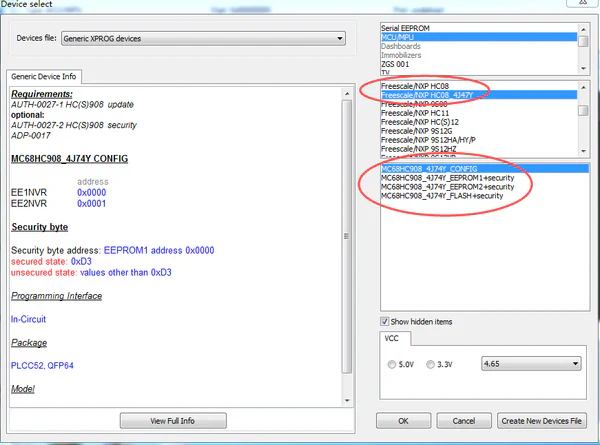

AUTH-0027-1 HC(S)908 update Authorized 2016/3/13

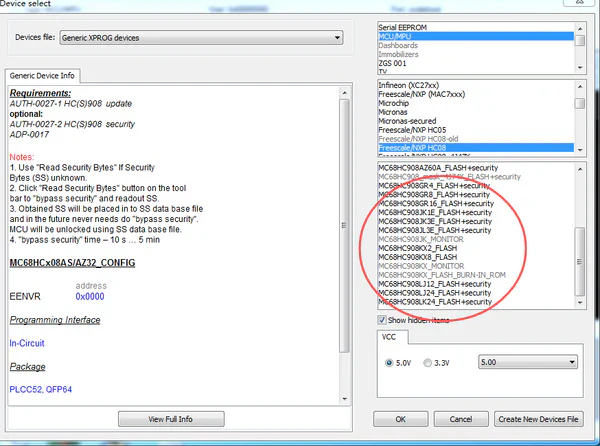

AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13

AUTH-0028-1 Renesas V850 Authorized 2017/10/9

AUTH-0028-2 Renesas SuperH Authorized 2017/10/9

XPROG M V6.50 V6.26 Adapters:

ADP-0001 TMS370 PLCC28 programming adapter

ADP-0002 TMS370 PLCC44 programming adapter

ADP-0003 TMS370 PLCC68 programming adapter

ADP-0004 Motorola HC05B/X PLCC52 programming adapter

ADP-0005 Motorola HC05B/X QFP64 programming adapter

ADP-0006 ST M35080 in-circuit programming adapter

ADP-0008 TMS374 family in-circuit programming adapter

ADP-0009 MC68HC05V12 programming adapter

ADP-0010 TMS374 on-board programming adapter

ADP-0011 HC11EA9/E9 programming adapter

ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

Additional adaptor for 5M48H P-Flash

ADP-0019 Rev.A

EWS3 adaptor

EEPROM adaptor

QFP28 adaptor

QFP64 adaptor

QFP80 adaptor

QFP112 adaptor

QFP144 adaptor
