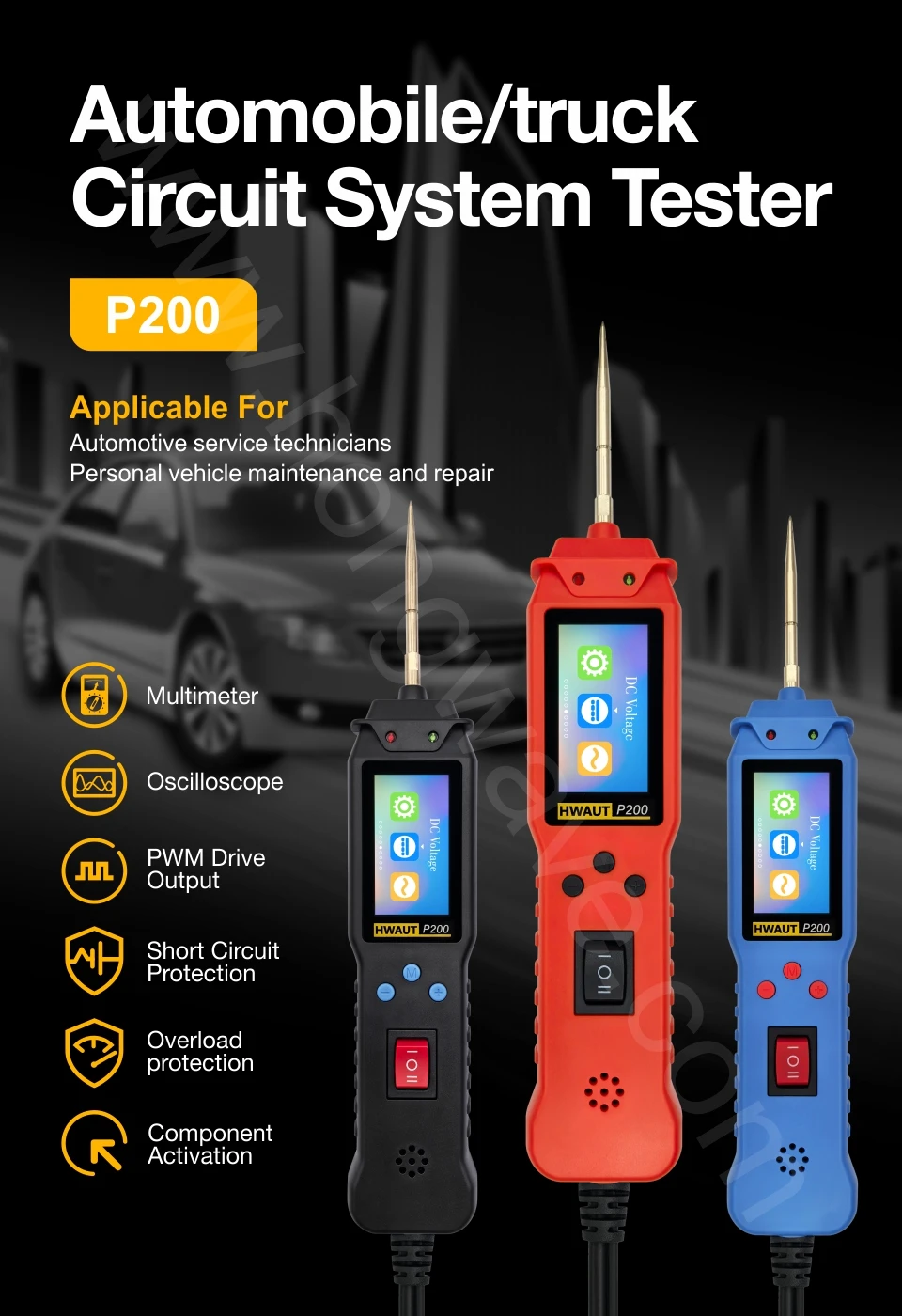

24V P200 Automotive Circuit Tester Power Circuit Probe Electrical Tester Continuity Voltage Lamp Testing

P200 Car Circuit Tester Automotive Circuit Diagnostic Tool Circuit Probe Kit Digital Oscilloscope Instrument P100

This professional-grade automotive electrical circuit tester is designed for quick and accurate diagnostics of 12V and 24V electrical systems in cars, trucks, and other vehicles. It's an essential tool for both professional mechanics and DIY enthusiasts. Easily identify short circuits, open circuits, voltage drops, and continuity issues. The intuitive interface and rugged design make it easy to use in any environment.

Product Features:

• Automotive circuit system tester supports voltage test, resistance test, diode test, short circuit protecting, component activation and other functions with high practicality.
• Equipped with TFT color display, high clear icons and large font, easy to view. High-sensitivity probe helps you reach the hard-to-reach areas by hand more easily.
• Internally enhanced input protecting against reverse polarity, over-voltage protecting, protecting against poor test chuck contact, etc. for safer use.
• Support multiple languages, English, French, Spanish, Portuguese ,Russian and Chinese, you can choose according to your needs.
• Easy to operate and use, compatible with 12-24V vehicle, suitable for auto mechanics as well as home vehicle maintenance and repairing.

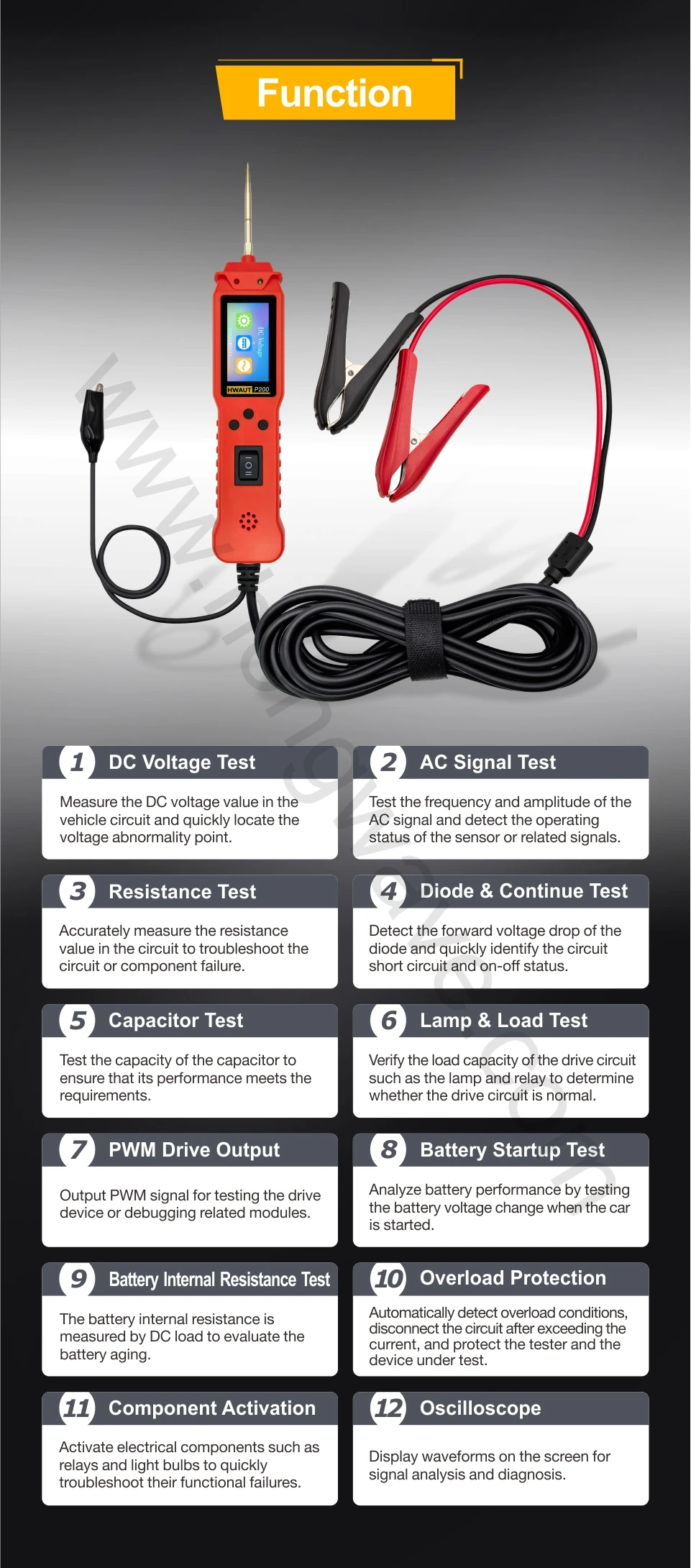

Product Fuction:

1.DC Voltage Test:Measure the OC voliage value in the vehicie circuit and quick locate the voltage abnermaity point.

2.Ac Signal Test:test the frequancy and amplitude of the AC signal and detect the operating status of the senser or related signals.

3.Resistance Test: Accuralely measure the resistance value in the circuit to troubleshoot the circuit or oomponent failure.

4.Diode & Continue Test:Delect the forward vollage drop of the diode and quickly identily the circuit short circuit and on-off states

5.Capacitor Test:Tesl the capacity of the capacitor to ensure that its performance meets the requirements.

6.Lamp & Load Test:Verity the load capacity of the drive circuit ,such as the lamp and relay to detemine whether the dirve circuit is normal.

7.PWM Drive Qutput:Output PWM signal for testing The drive dewice or debugging related modules.

8.Battery Startup Test:Analyze battery paformance by testing the battery voltage change when the car is started.

9.Battery Internal Resistance Test:The battery, internal resitance is measured by DC load to evaluate the battery aging.

10.Overload Protection:Automatically delete overkoad conditions,disconnect the circuit after exceeding the current,and protect the tester and the device under tester.

11.Component Activation:Activate electrical component such as relays and lignt bulbs to quickly troubleshoot there functional failures.

12.0scilloscope:Display waveforms on the screen for signal analysls and diagnosis.

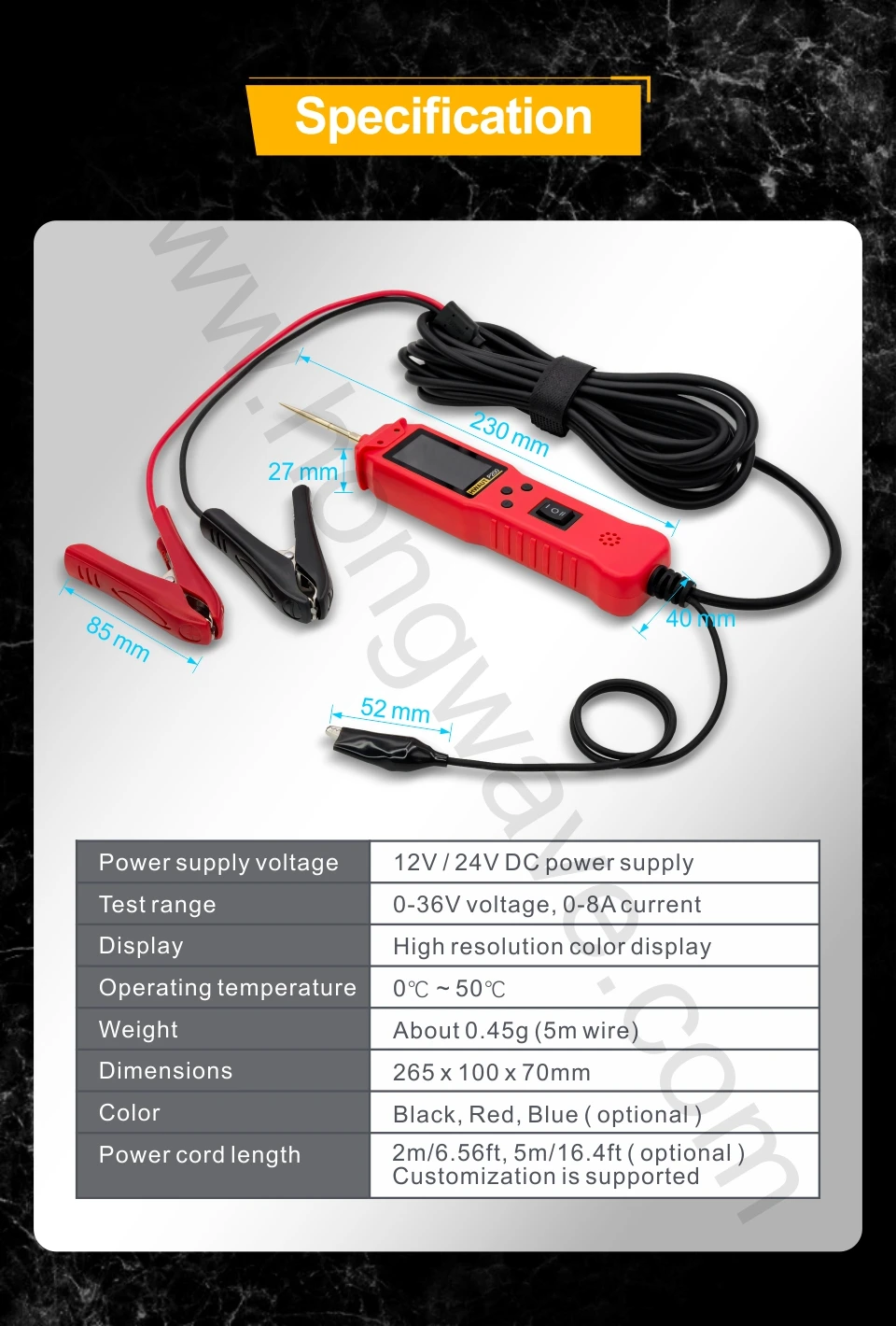

Product Specifications:

Color: Black Bue rRed

Material: ABS+Iron

Screen: TFT Color Screen

Input Voltage: 12V or 24V

Direct Current Voltage Ranges: 0-65V

Resistance Ranges: 0-200KΩ

Rated Current: 1-10Amp.

Working Temperature: 0-50℃(32-140℉)

Extension Cable Length: About 2M

Product Size:26.5X10X7CM

Product Weight:About 0.45kg

Packing in retail box
