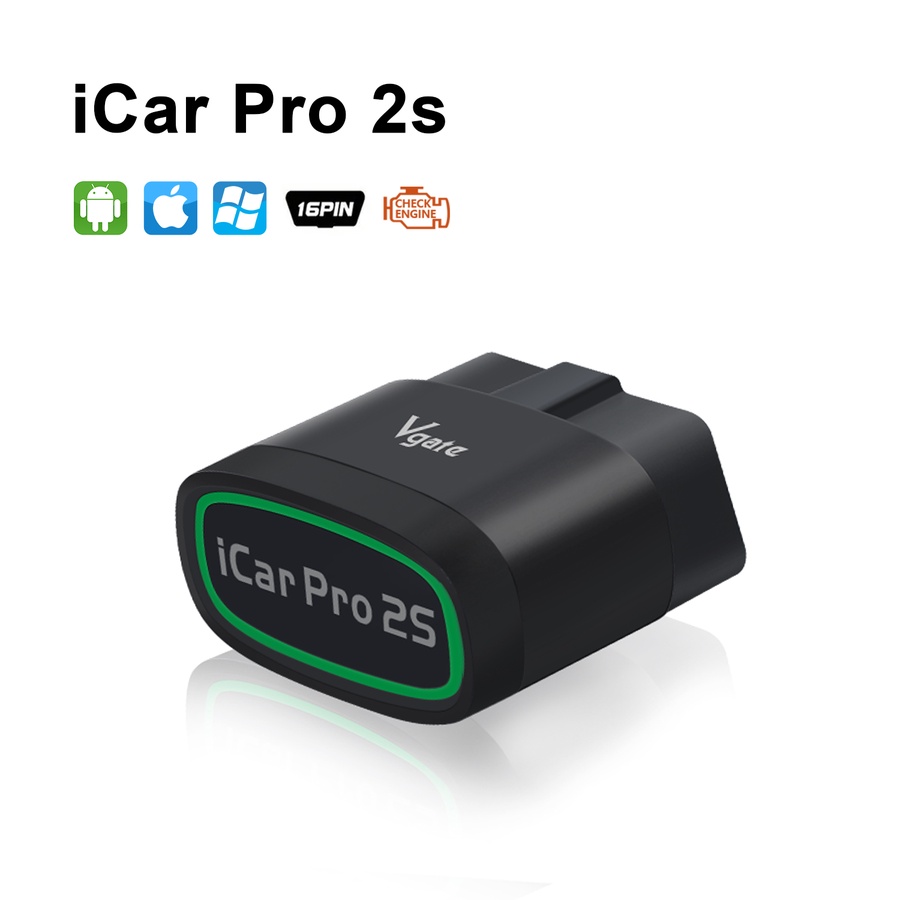

NEW Vgate iCar Pro 2S ELM327 Bluetooth 5.2 V2.3 EV Auto Diagnostic Tool for IOS Android PC

Newest Vgate iCar Pro2S ELM327 Bluetooth 5.2 for IOS/ Android/ PC OBD2 Car Diagnostic Tool elm327 Upgraded OBD 2 OBDII Auto Scanner

Vgate iCar Pro 2S is a Bluetooth product , Transform for iPhone, Android device, or Windows PC into a professional-grade diagnostic scan tool.

The iCar Pro 2S Bluetooth OBD-II adapter can access all legal OBD-II protocols. Connect to the vehicle diagnostic seat through a plug, install client software and diagnostic software to diagnose car faults.

For example, reading non-specific and manufacturer-specific fault codes, reading real-time ECU sensor data (engine speed, fuel system status, fuel pressure, oxygen sensor voltage and many other readable parameters on the vehicle) and more!

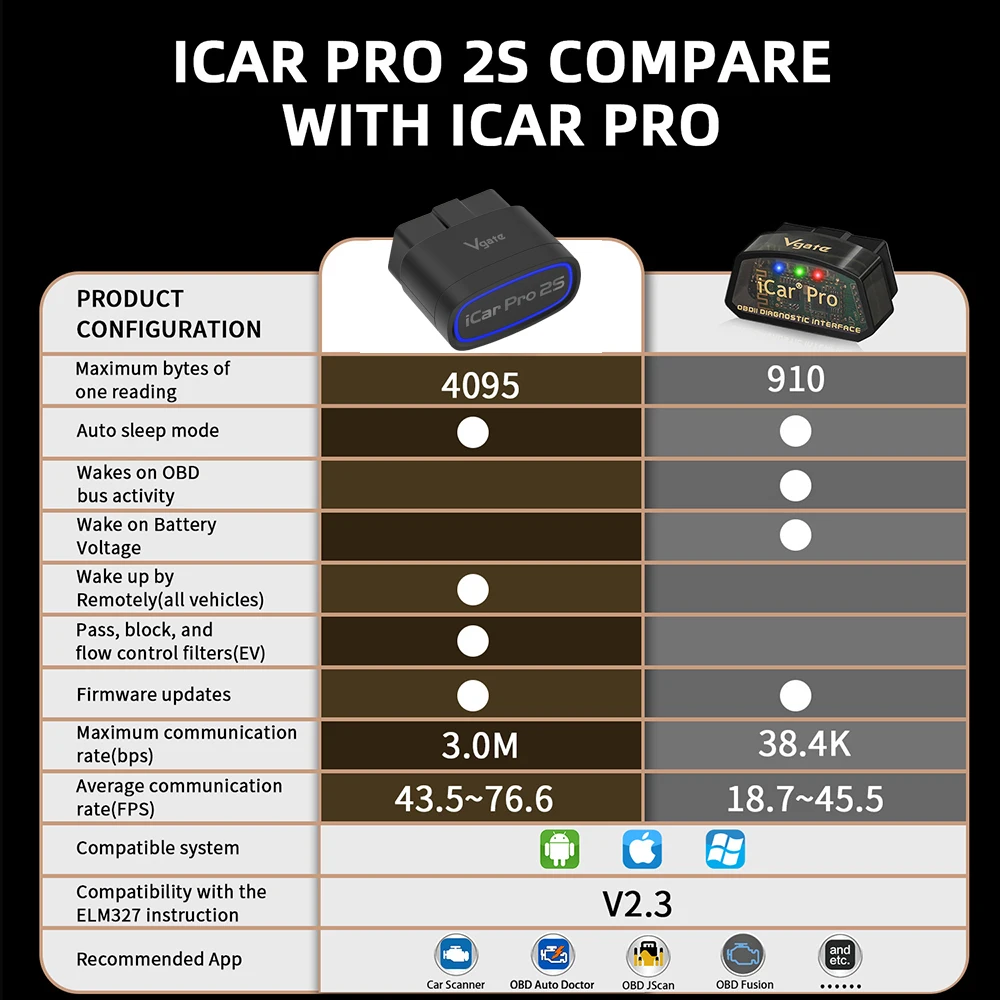

ICAR PRO2S VS. ICAR PRO

* Bluetooth 5.2 Support Android/ IOS/ PC

* Connection speed upgrade

* Supporting new energy vehicles

* low power mode

Key Features:

Over-voltage, over-temperature, over-current protection.

Fast Bluetooth OBD-II adapter (baudrate: 3Mbps).

Free firmware updates.

BatterySaver technology - low power mode.

Automatic sleep & Wake up wirelessly.

Up To 208 groups pass, block, and flow control filters.

Superior compatibility - works with more 3rd party apps & software than any other adapter.

The iCar Pro 2S has added the automatic wake-up function of electric vehicles to the iCar Pro, providing customers with more choices!

Fully compatible with all OBD2 protocols and commands, with unique auto sleep/ wake function. It operates at 34 mA and automatically sleeps in idle state at as low as 3 mA, protecting the life of the car's battery.

The "Auto Wake-Up Function" can also support vehicle type: Hybrid / Pure Electric Vehicle.

Vgate iCar Pro 2S connection steps (Taking Car Scanner APP as an example)

For Android system:

After opening the Bluetooth, search the product Bluetooth device name ‘Android-Vlink’, enter the pairing code ‘1234’ to pair successfully, then you can enter the app to set up the connection.

For iOS system:

After opening the Bluetooth, there is no need to pair the product Bluetooth device name, then you can open the app to set up the connection.

For Windows system:

(Note: the Bluetooth device name is the same as the device name shown in Android system)

After opening Bluetooth, search for the product Bluetooth device name ‘Android-Vlink’ in the Bluetooth settings, enter the pairing code ‘1234’ to pair successfully, and then enter the app settings to connect. It can be paired successfully, then enter the app settings to connect.
