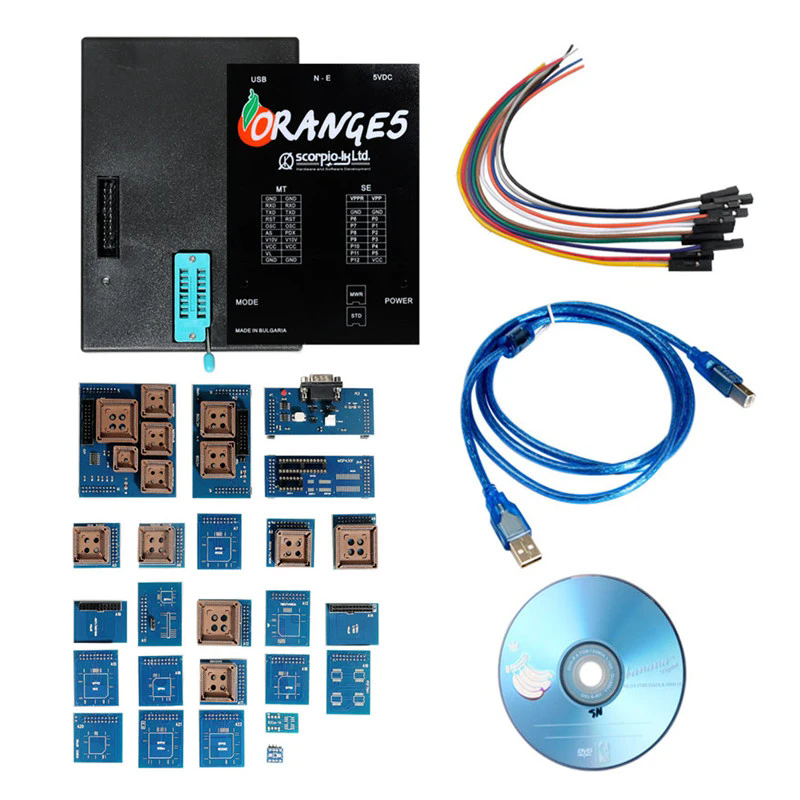

OEM Orange 5 Professional Programming Device With V1.35 Software & Full Adapters

Orange 5 is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.

The highlights of OEM Orange 5 Professional Programming Device?

Software Version: V1.35

Language: Chinese, English and Russian

Systems: XP WIN7 WIN8 Win10

Supports reading and writing chips for Motorola, Renesas, Fujitsu, Infineon, NEC,ST, ATMEL and latest encryption 908.

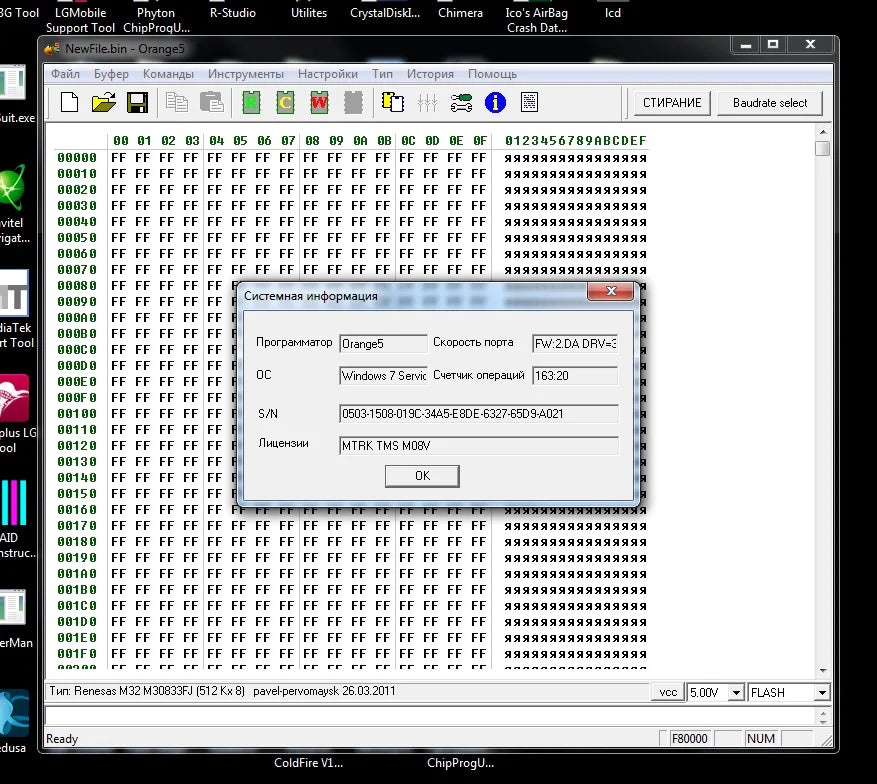

Orange 5 ECU Programmer Feature:

Supports any COM ports, incuding virtual ones from 1 to 20

Works with text (ASCII) and HEX mode

Creating a list of commands that allows editing and fast sending

Fine-tuning the exchange rate

Saving files including command and port settings.

Saving incoming data in binary files

File transfer via serial port.

Delay settings for bytes and blocks

"Echo" mode

Delay settings between incoming data

Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI

Program doesn't need to be installed

Supports Orange5 programmer in emulation mode.

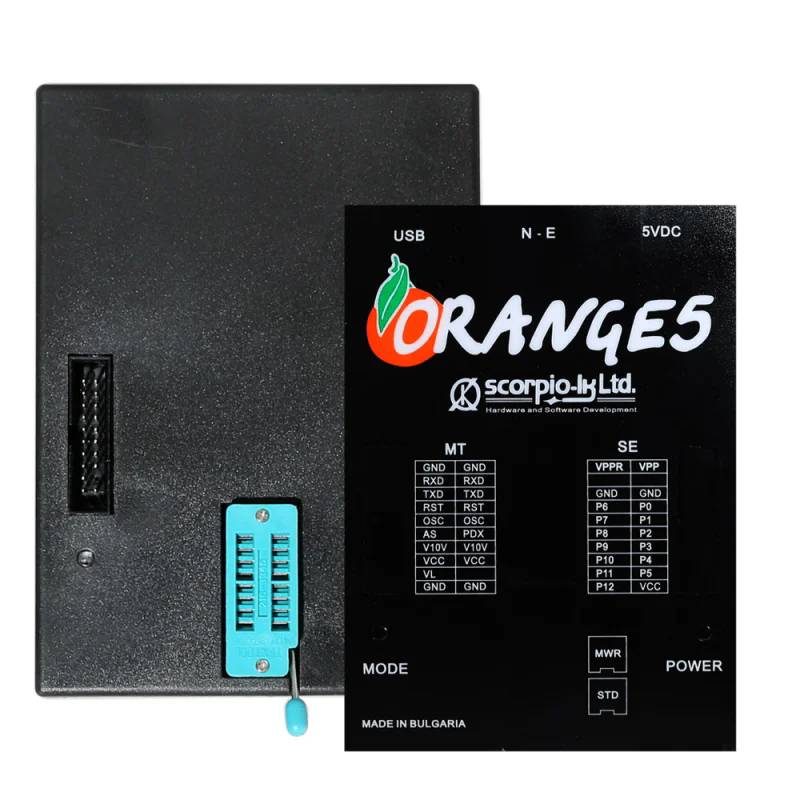

Orange5 Technical Info:

* USB power supply (USB2.0/3.0)

* Universal easy to plug panel ZIF16 for EEPROM

* Control of contacts in the sockets

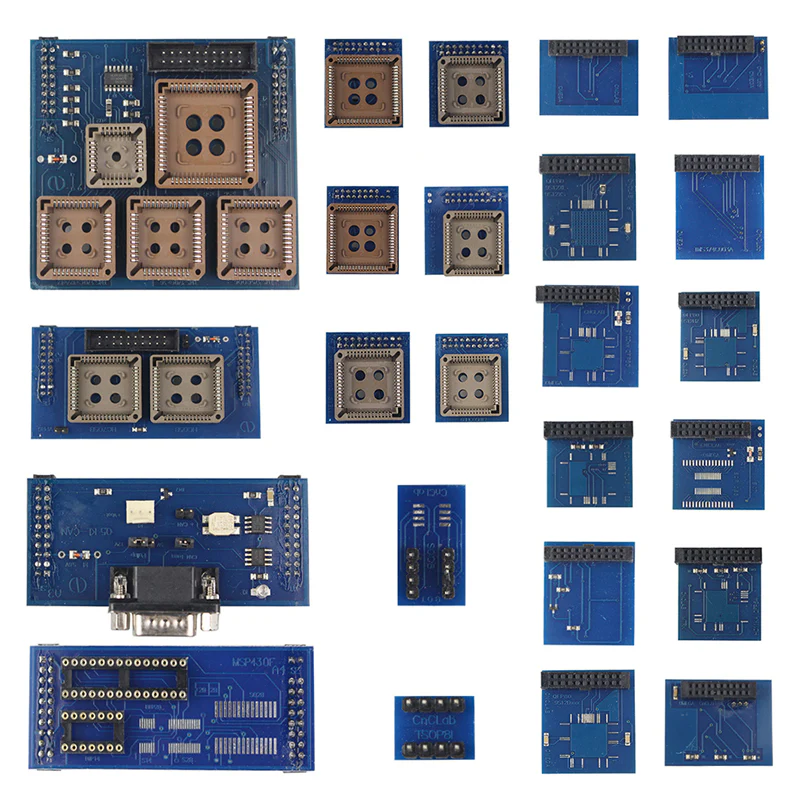

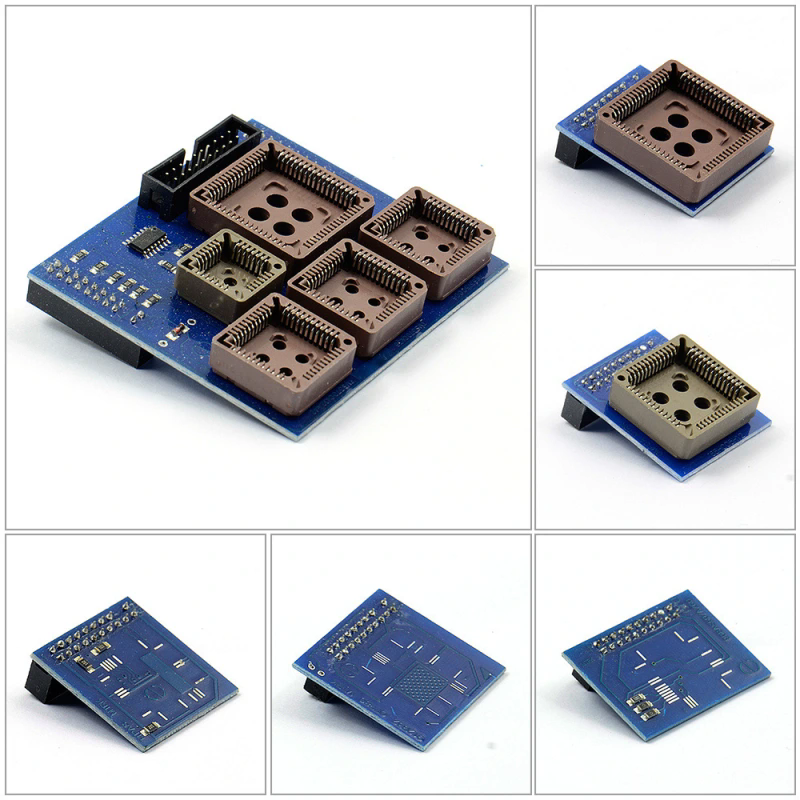

* Two expansions compatible with Orange4 and Omega MTRK

* Protection against overcurrent

* Overload voltage protection

* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)

* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)

* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

* Capability of functional emulation of class CDC USB devices

* Built-in 32-bit virtual machine

* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)

* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1

CnCterm - Terminal program for work with COM ports.
