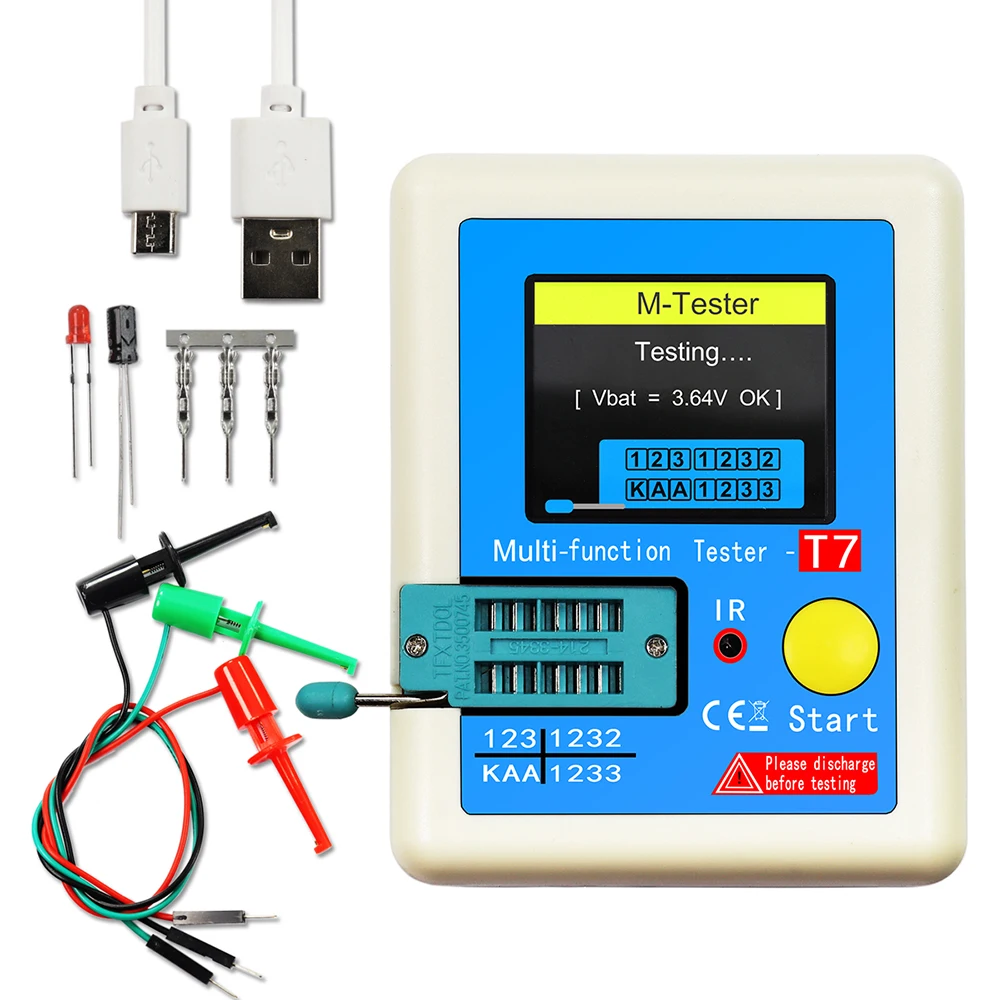

LCR-T7 New Transistor Tester TFT Diode Triode Capacitance Meter LCR ESR Meter NPN PNP MOSFET IR Multifunction Tester Multimeter

Cautions for use：

The capacitor shall not be tested without discharge

The inductance of the transformer cannot be tested

Don't test online with electricity

Do not hook three hooks onto the circuit board for testing

Do not test live circuit boards

Otherwise, the tester will be burnt down. Burning the tester is the buyer's reason.

When the voltage and internal battery are below 3V, please charge before use.

Please use 5V battery or USB port to charge.

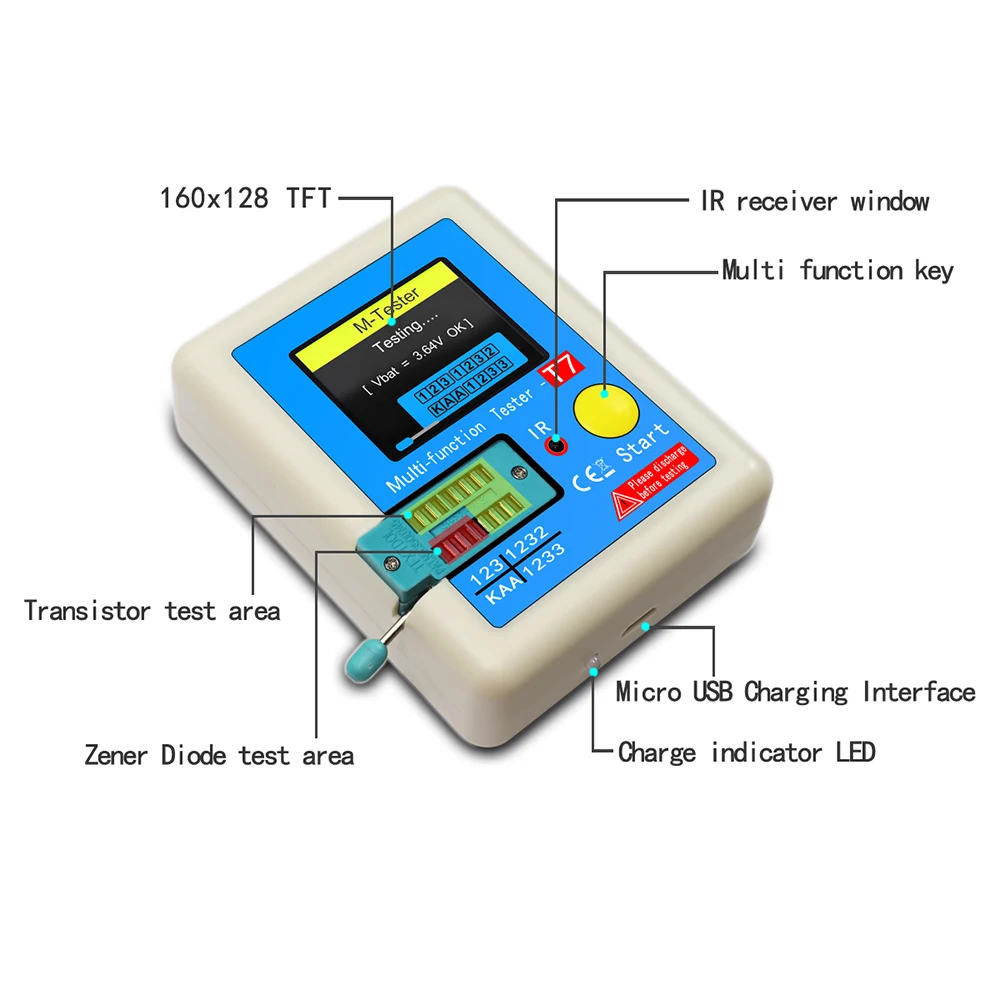

Transistor Detection:

After the power-off state or test is completed, put the test component into the transistor test area of the test socket, press the lock handle,

press the multi-function key, the tester automatically measures, and the measurement result is displayed at the end of the test.

Warning: We do not recommend using a tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!

Feature:

Automatic detection of zener diode 0.01-30V.

Self test with automatic calibration.

Support Hitachi IR coding.

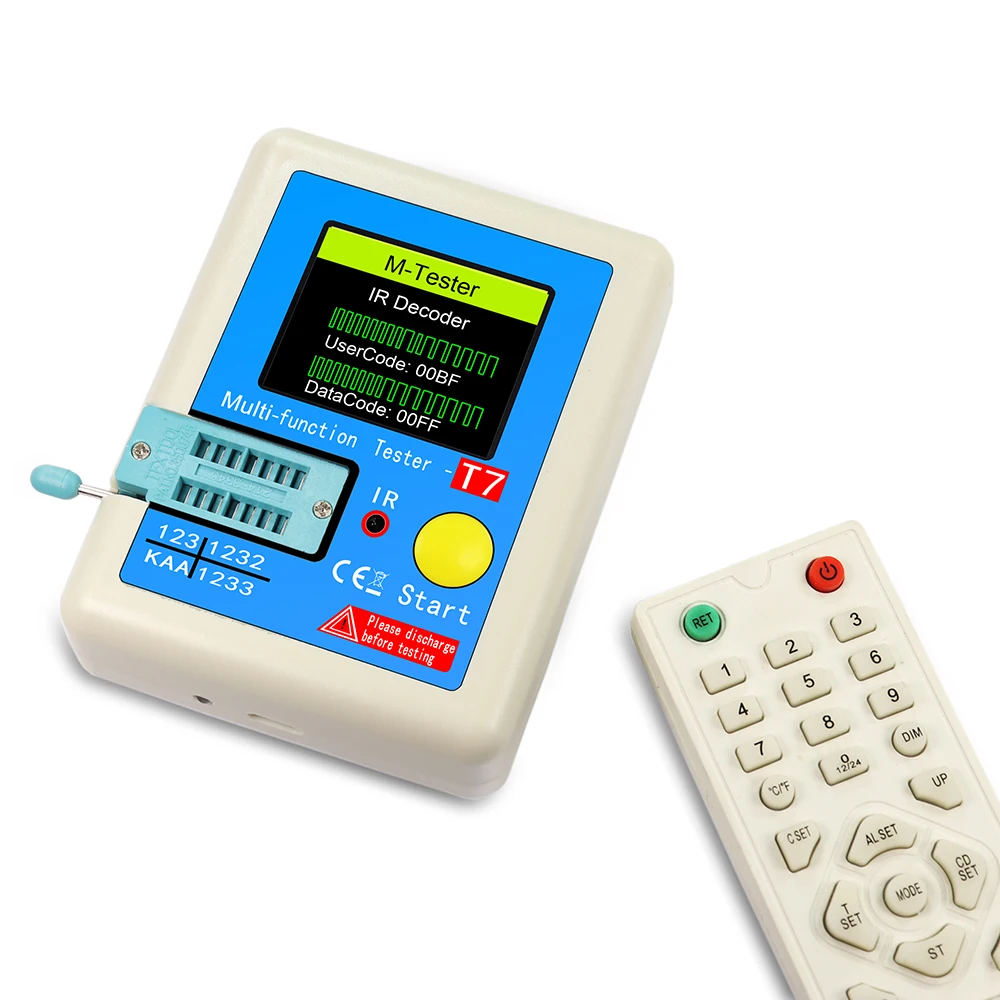

IR waveform display.

Infrared receiving instruction.

Measurement results using TFT graphic display.

One key operation.

Auto power off (timeout settable).

Built-in high capacity rechargeable Li-ion battery.

Li-ion Battery voltage detection.

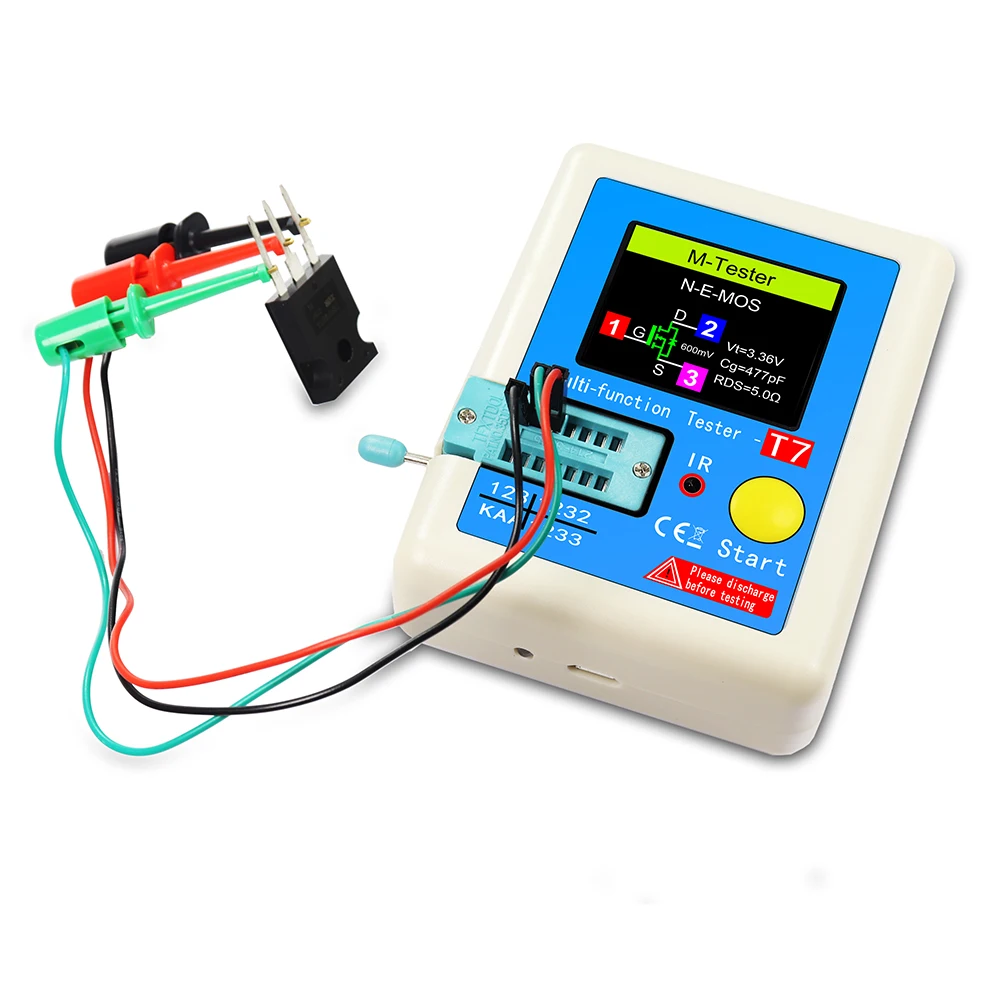

Used to detect NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries

Specification:

Sweep range: 0.1MHz

Voltage: 3.7V

Display: 160 * 128 TFT

Battery: 1 * Li-ion battery, 3.7V, 300mAh

Specifications:

Display: 3.5inch TFT Screen

Operating Temperature: 0 - 40 ℃

Measuring Resistance Range: 0.01-50MΩ

Measuring Inductance Range: 0.01mH-20H

Measuring Capacitance Range: 25pF-100mF

Power Mode: Rechargeable Lithium Battery (INCLUDED)

Features:

|True Tester|What Is Capacitor Esr|Tc1 Tester|

**Advanced Diagnostic Capabilities**

The LCR-T7 New Transistor Tester is a multifunctional device designed to cater to the needs of electrical enthusiasts and professionals alike. With its 3.5inch TFT screen, this multimeter offers a clear and vivid display of measurement results, making it easy to read and interpret data. The operating temperature range of 0 - 40 ℃ ensures that the device can be used in a variety of environments without compromising on performance. The multimeter's impressive measuring capacitance range of 25pF-100mF and inductance range of 0.01mH-20H make it a versatile tool for testing and troubleshooting a wide array of electronic components.

**User-Friendly Operation and Safety**

The LCR-T7 is not just a multimeter; it's a smart device that simplifies the testing process. With its one-key operation and automatic power-off feature, users can focus on their tasks without worrying about the device's status. The multimeter's built-in rechargeable lithium battery ensures that it's always ready for use, and the battery voltage detection feature keeps users informed of the battery's health. To ensure safety, the device is equipped with a self-test function and automatic calibration, which helps to prevent damage from incorrect usage.

**Versatile Testing Capabilities**

This multimeter is more than just a capacitor ESR tester; it's a comprehensive tool for electrical diagnostics. It supports the testing of NPN and PNP transistors, capacitors, resistors, diodes, transistors, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs, and batteries. The device's transistor detection area covers a wide range of voltages, from 0.01V to 4.5V, making it suitable for a variety of transistor types. Additionally, the multimeter's support for Hitachi IR coding and IR waveform display enhances its functionality, making it a valuable asset for professionals and hobbyists alike.
