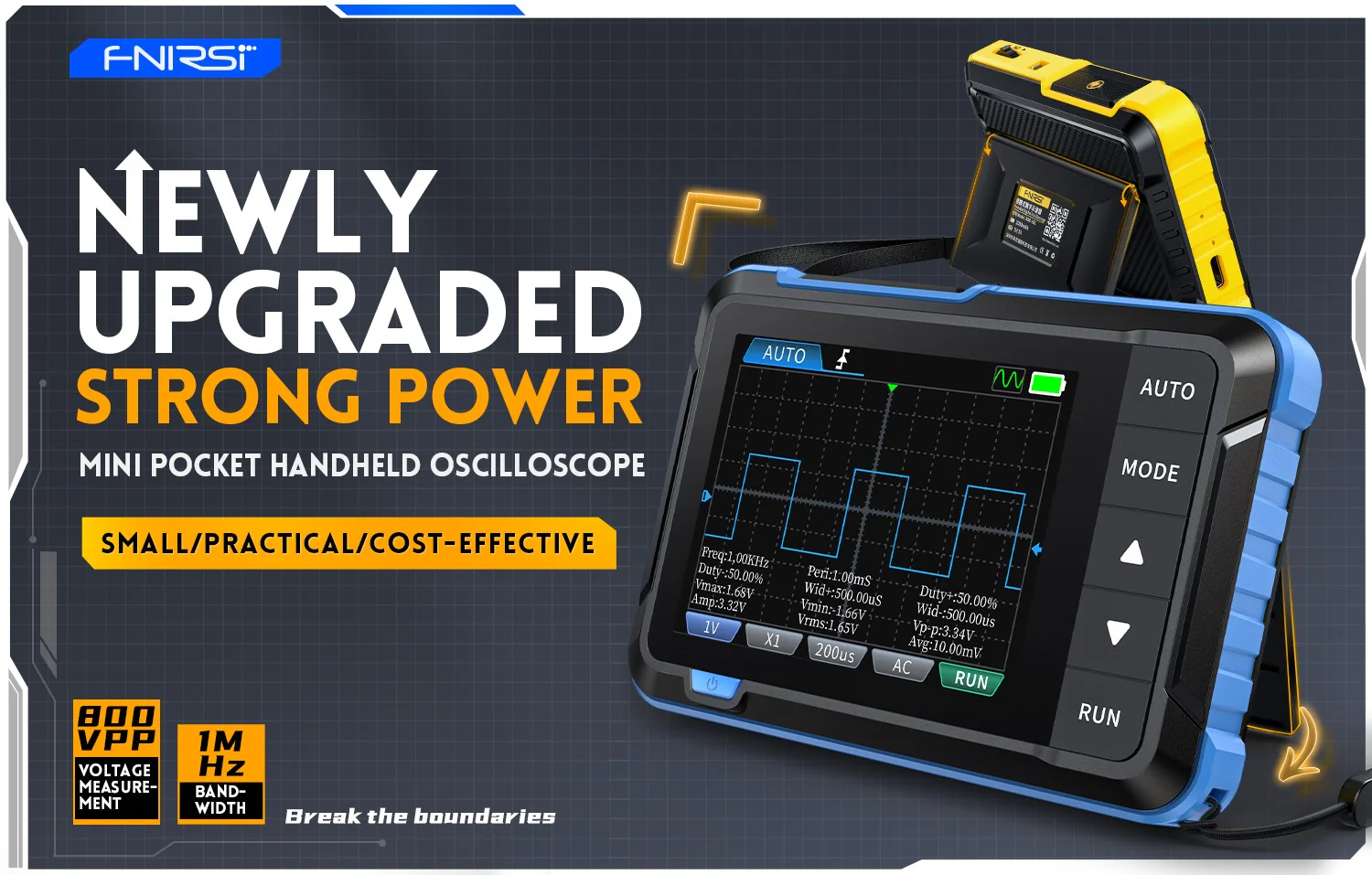

FNIRSI® DSO-153 2-IN-1 Mini 1MHz 5MS/s Digital Oscilloscope Waveform Generator

Highlights

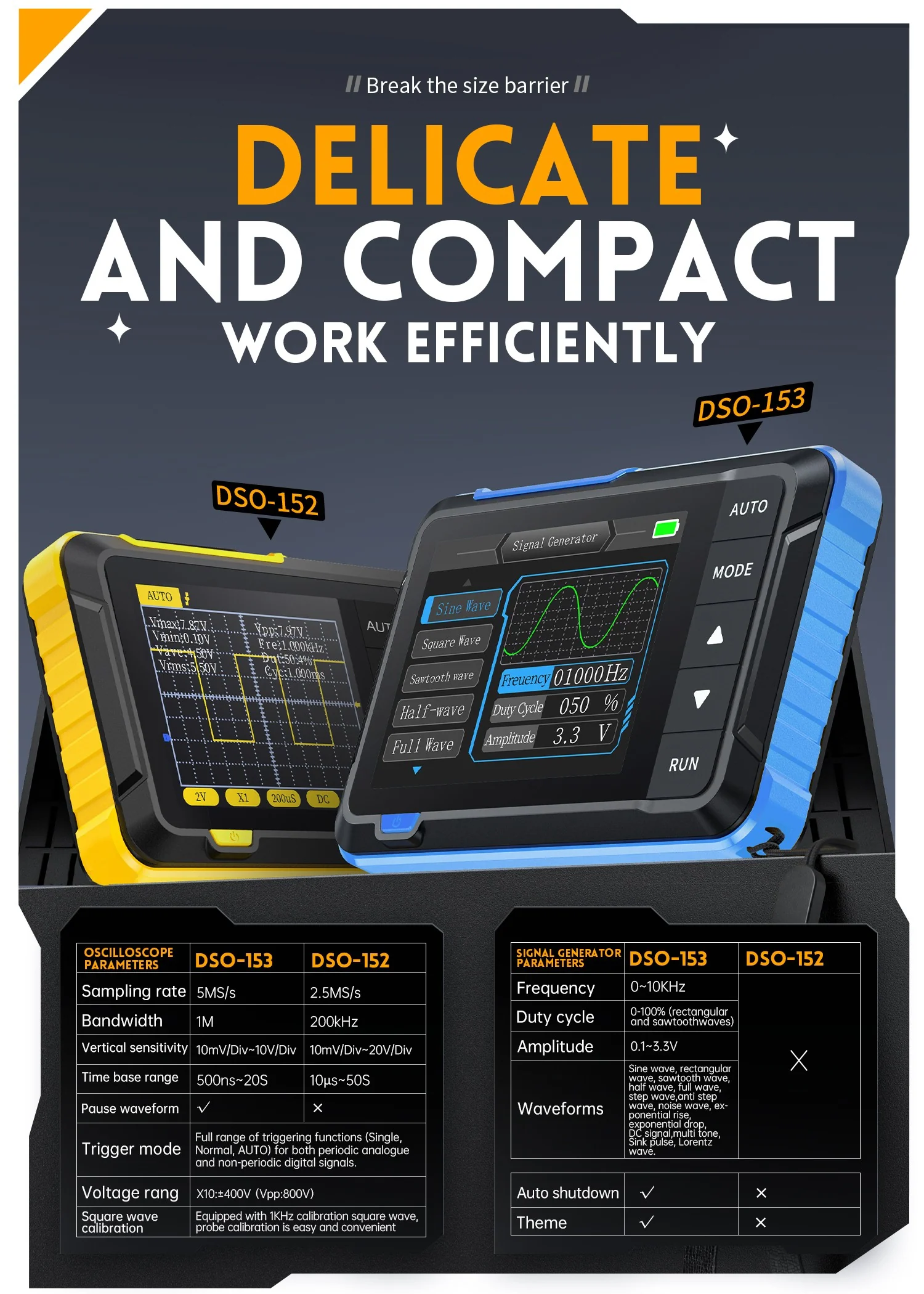

✦ Upgraded Version: Oscilloscope and DDS signal generator dual mode with 1 MHz High bandwidth, 5MS/s high sampling rate, 500ns-20S time base range, and can measure voltages up to 400V.

✦ DDS Signal Generator: The DDS signal generator can output 14 waveforms, and the maximum waveform output frequency is up to 10KHz.

✦ Easy Measurement: The handheld oscilloscope is equipped with intelligent one-click automatic configuration function. Long press the AUTO button to quickly calibrate the baseline and display the measurement waveform without complicated debugging.

✦ Professional Design: The automotive oscilloscope is equipped with a 2.8-inch High-definition LCD display, 320*240 resolution, Auto/Normal/Single trigger function, suitable for periodic analog signals and non-periodic digital signals.

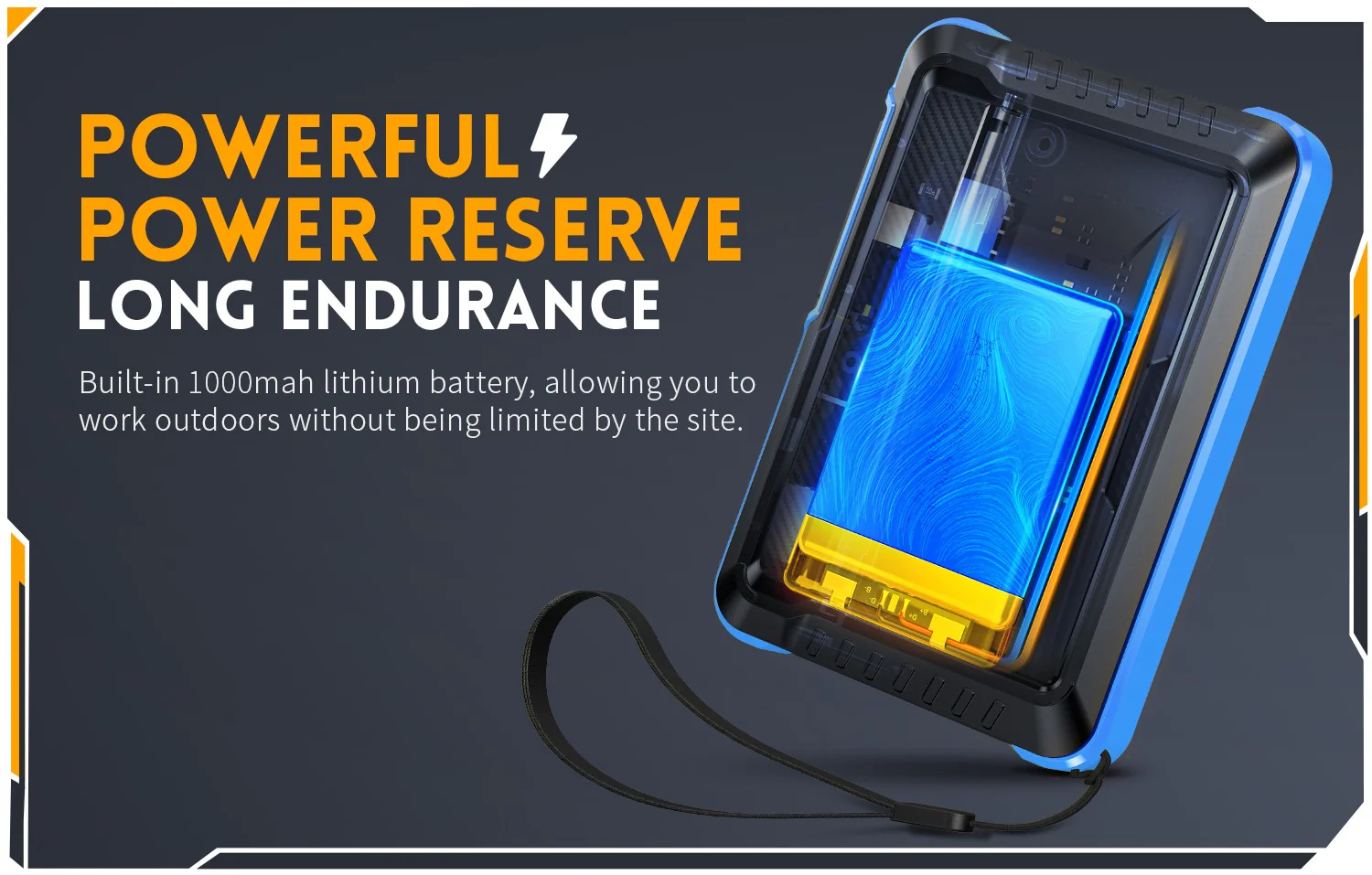

✦ Rechargeable lithium battery: The portable oscilloscope has a built-in 1000 mAh high-quality lithium battery, supports Type-C interface charging, and has a battery life of about 4 hours.

The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing. This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10KHz). Equipped with a 2.8-inch 320*240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.

Features

• Portable 2.8" TFT Handheld Oscilloscope for beginners, hobbyist
• DSO oscilloscope: 5MS/s, 1MHz bandwidth, ±400V voltage range.
• Signal Generator: 10KHz
• High-definition 320*240 LCD, Type-C interface.
• Finished assembly, lightweight, perfect for maintenance.
• Versatile trigger functions: single, normal, automatic.
• Signal Type Support: Periodic analog signals and non-periodic digital signals.

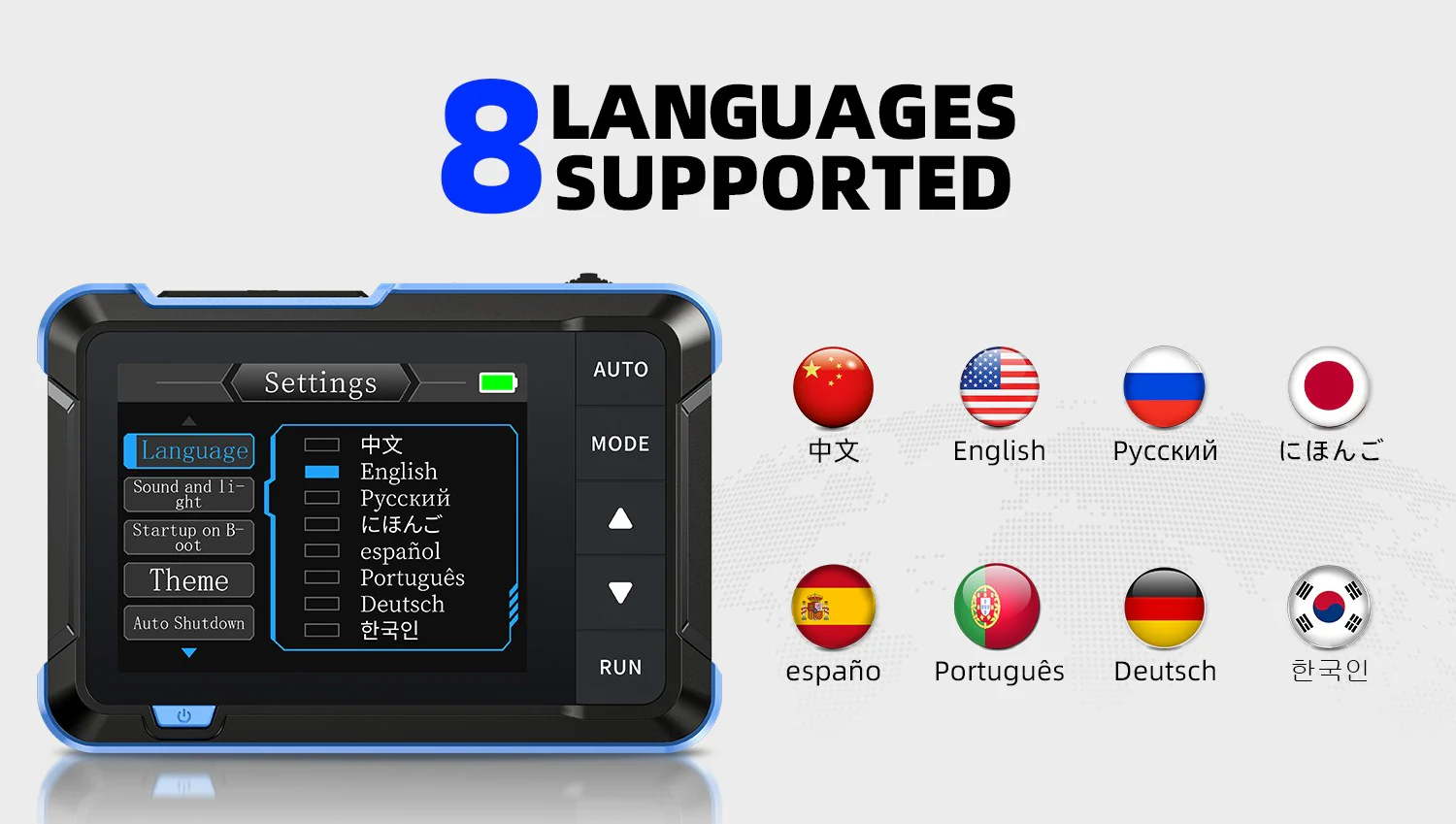

• 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean.
• One-Click AUTO Mode: Effortlessly display waveforms with minimal input.
• Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
• Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations
