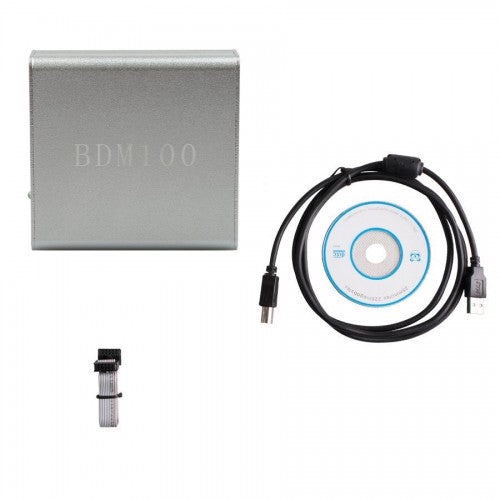

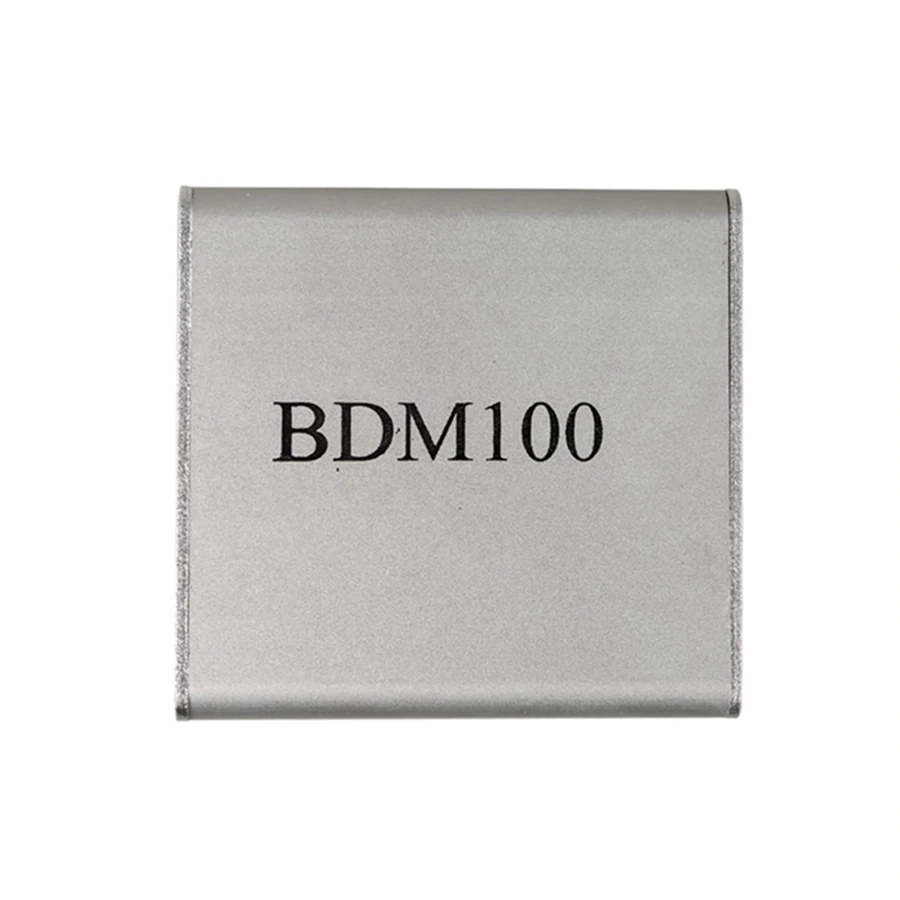

BDM100 Programmer V1255 BDM 100 ECU Chip Tuning Tool

BDM100 is a universal ECU reader/programmer that allows the user to read and program files in the ECU supplied with MOTOROLA MPC5xx processor. BDM100

BDM100 Programmer V1255 Universal Reader/Programmer

Software:V1255

Language:English

System Requirement: Win XP /win7 32bits(close anti-virus program)

Note:Disconnect internet when install&run software.

No software installation service for hardware purchased separately

Due to the different computer hardware, computer systems require different drivers, some customers can not use the software, VXDAS.COM sells a complete set of installed software computer

BDM100 Programmer V1255 Description:

BDM100 is a universal reader/programmer (it does not require our RACE software necessarily) that allows the user to read and program files in the ECU supplied with MOTOROLA MPC5xx processor (essential).

BDM 100 requires the ECU to be open, "on the bench", as the reading/programming operations are realized by linking a flat cable to specific area the ECU (the tool, on the other side, is linked to the USB port of a computer).

BDM 100 allows also to create perfect copies of the whole software of an ECU (after having read the original ECU software).

The Software Allows To Read and Program the WHOLE ECU Content Of:

29BL802 SSOP eprom file (or ROM memory with maps if eprom physically not present)

MOTOROLA MPC5xx Processor file

Serial Eprom content.

Please note that even in the case of the ECU blocking, due to the wrong checksum recalculation, the ECU can always be reprogrammed and then retrieved (if the original software has been previously stored).
